Raynor prints the name Sentinel 360, Sentinel 360 BBU, or Sentinel 360 HD BBU on the side of the operator. The manuals we have posted are for the 87504RGD-267, the current belt-drive 6690R (Sentinel 360 BBU), and the current chain-drive 4690R (Sentinel 360 HD BBU). These are ceiling-mount camera openers. An L993M visor remote, L932M keychain, or L979M keypad will program to the Learn button. Not every Sentinel 360 model or manual is shown here. We post the manuals we have. Older or uncommon units may not be listed.

Shared features

• Ceiling-mount camera openers
• 87504RGD-267 is the earlier Sentinel 360 book
• 6690R is the current Sentinel 360 BBU (1¼ HP belt)
• 4690R is the current Sentinel 360 HD BBU (heavy-duty chain)

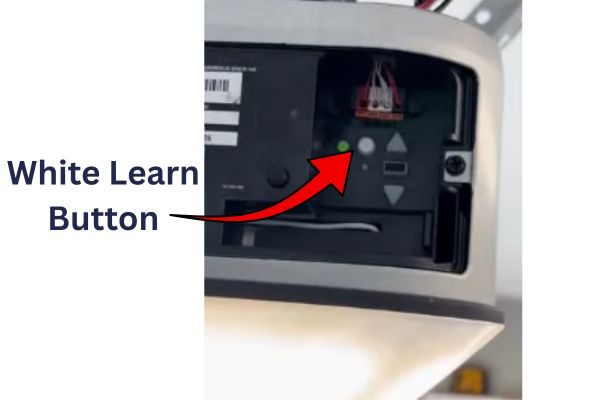

• 87504 is yellow Learn; 6690R and 4690R are white Learn (Security+ 3.0)

Sentinel 360 Manuals

Sentinel 360 BBU 6690R Manual (white Learn button) Download PDF

Sentinel 360 HD BBU 4690R Manual (white Learn button) Download PDF

Sentinel 360 87504RGD-267 Manual (yellow Learn button) Download PDF

Compatible remotes and parts

Here are some common compatible parts. Search all Raynor parts on the store: Shop Raynor Parts.

L993M Remote

Current 3-button visor remote. Works on Sentinel 360 yellow and white Learn buttons.

Shop L993M

L932M Keychain Remote

Current 2-button mini remote. Replaces the discontinued 890MAX / 890RGX.

Shop L932M

L979M Keypad

Wireless keypad. Replaces the 878MAX on these Sentinel 360 operators.

Shop L979M

041-0136 Safety Sensors

Current photo-eye kit. Replaces 41A5034. Compatible with these Sentinel 360 models.

Shop 041-0136

We don’t sell opener circuit boards. They typically aren’t the issue when experiencing problems with the operator. Go through the troubleshooting steps in the operator manual and if you still believe that you need a logic board, email store@garagedoorzone.com and we can point you to the correct part number.
