MTS-1 / MTS-3 Linear Remotes

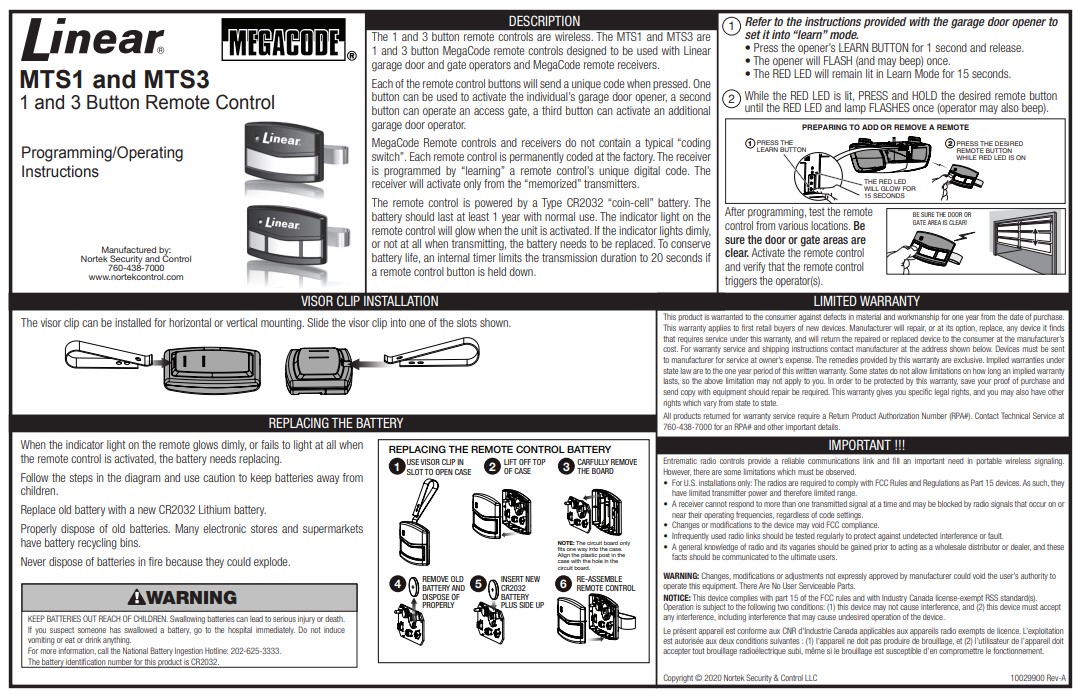

The MTS-1 is a 1-button Linear MegaCode remote. The MTS-3 is the 3-button version. Both are factory coded at 318 MHz and learn into a MegaCode opener or receiver. The same instruction sheet covers both remotes. The MTS-1 replaces the older MCT-11 and MTR-1. The MTS-3 replaces the older MCT-3.

Overview

Linear MTS-1 1-button MegaCode remote — Linear MTS-1

Linear MTS-3 3-button MegaCode remote — Linear MTS-3

MegaCode Learn button

These remotes work with Linear MegaCode openers and receivers. The opener or receiver learns the remote. Click the photo to enlarge.

The MTS-1 is one channel. Part number DNT00091. One CR2032 battery. 318 MHz. Visor clip included. The blue LED glows when the button is pressed.

The MTS-3 is three channel. Each button can be programmed to a different opener or receiver. Part number DNT00093. One CR2032 battery. 318 MHz. Visor clip included.

Both remotes are factory preprogrammed with one of over 1,000,000 MegaCode codes. After the remote is programmed to the opener, a vehicle with Homelink can usually learn that remote. Check the car owner’s manual for the Homelink steps.

Compatible Linear openers: LDCO863B, LDCO841, LDCO852, LDCO850, LDCO801, LDCO800, LSO50, LDO50, LDO33, LCO75, Nice Linear 621, and Nice Linear 661.

Compatible MegaCode receivers: MGR, MGR-2, SMDRG, MDR, MDR-2, and MDRU.

Compatible MegaCode keypads: NMTK, LPWKP, and MDTK.

Not every compatible opener or receiver is listed here. This same MegaCode list applies to the other Linear MegaCode remotes and keypads.
