MTR-1 Linear MegaCode Remote Instructions
The MTR-1 is a Linear MegaCode remote. It is 318 MHz and factory coded. It is compatible with Linear MegaCode openers and receivers. The instruction sheet also covers the MTR-3.
Overview
MegaCode Learn button
This remote works with Linear MegaCode openers and receivers. The opener or receiver learns the remote. Click the photo to enlarge.
The MTR-1 is a Linear MegaCode remote. It is factory coded with one of over 1,000,000 MegaCode codes and operates at 318 MHz. The same instruction sheet covers the MTR-3.
Compatible Linear openers: LDCO863B, LDCO841, LDCO852, LDCO850, LDCO801, LDCO800, LSO50, LDO50, LDO33, LCO75, Nice Linear 621, and Nice Linear 661.
Compatible MegaCode receivers: MGR, MGR-2, SMDRG, MDR, MDR-2, and MDRU.
Compatible MegaCode keypads: NMTK, LPWKP, and MDTK.
Not every compatible opener or receiver is listed here. This same MegaCode list applies to the other Linear MegaCode remotes and keypads.
Instructions

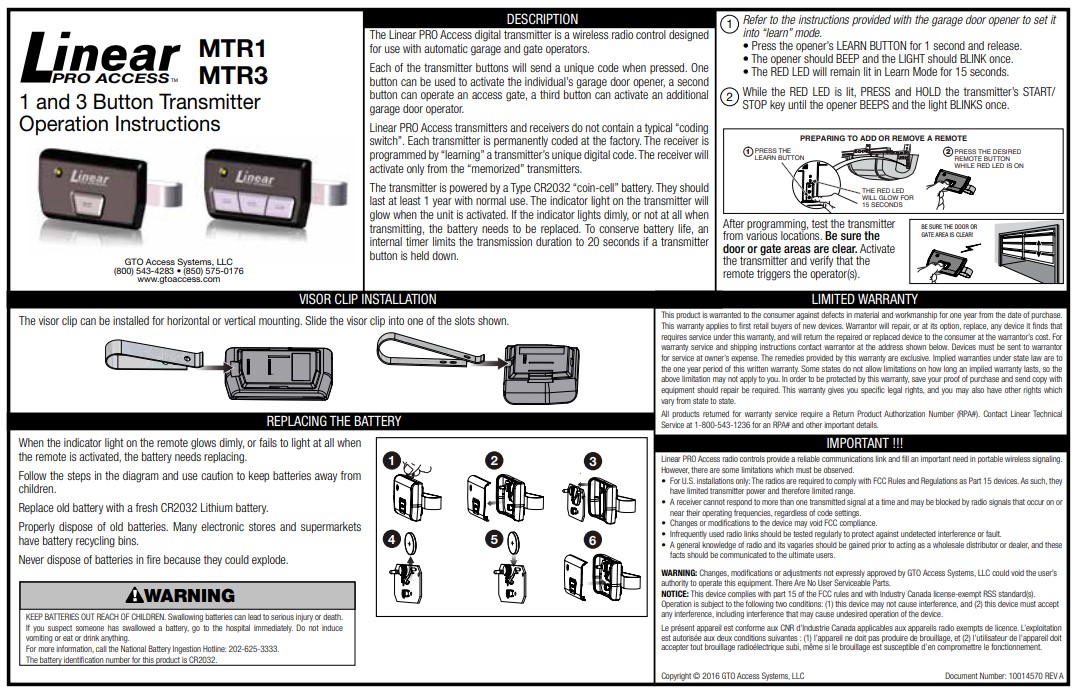

Linear MTR-1 / MTR-3 Remote Instructions
Download PDF
