LiftMaster 1000 Series Opener Manuals

These LiftMaster 1000 Series openers mount on the ceiling with a rail. The manuals we have posted are for the 1355C / 1345C, 1280, 1265, and 1255R / 1245R. Horsepower is 1/4 HP, 1/3 HP, or 1/2 HP. Most are chain drive; the 1280 is a Formula 1 belt-drive unit. Learn button color is not the same on every model in this group. An 893MAX remote or 878MAX keypad will program to the Security+ units. Not every LiftMaster 1000 Series model or manual is shown here. We post the manuals we have. Older or uncommon units may not be listed.

Shared features

• Ceiling-mount rail openers for typical residential sectional doors
• No built-in Wi-Fi / myQ on these openers
• 1/4 HP, 1/3 HP, or 1/2 HP depending on the exact model
• Most are chain drive; the 1280 Formula 1 is belt drive

Orange / Red

Purple

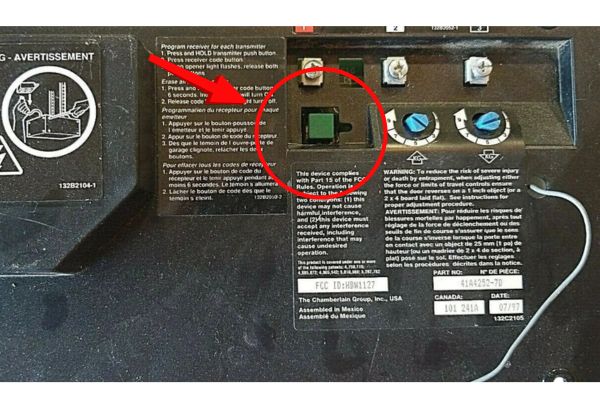

Green

Learn Button Color Varies

Many Security+ models in this group use an orange or red Learn button (390 MHz). Some later C-suffix units use a purple Learn button (315 MHz). Older 1100 Series units may have a green Learn button or code switches. Look at the button on the motor head before you buy a remote. An 893MAX or 878MAX will program to the orange/red and purple Security+ units. Click a photo to enlarge.

Compatible remotes and parts

Here are some common compatible LiftMaster parts. Search all LiftMaster parts on the store: Shop LiftMaster Parts.

893MAX Remote

3-button visor remote. Works with the orange/red and purple Security+ models in this group.

Shop 893MAX

878MAX Keypad

Current wireless keypad for the Security+ models listed here.

Shop 878MAX

41B3869-3A Belt Drive Trolley

For the 1280 Formula 1 belt-drive opener. Chain-drive models use a different trolley.

Shop 41B3869-3A

41A3489 Chain Drive Trolley

For chain-drive models in this group, such as the 1265, 1345, and 1255R. T-rail chain openers only.

Shop 41A3489

We don’t sell opener circuit boards. They typically aren’t the issue when experiencing problems with the operator. Go through the troubleshooting steps in the operator manual and if you still believe that you need a logic board, email store@garagedoorzone.com and we can point you to the correct part number.
