890MAX, 893MAX & 895MAX Remotes

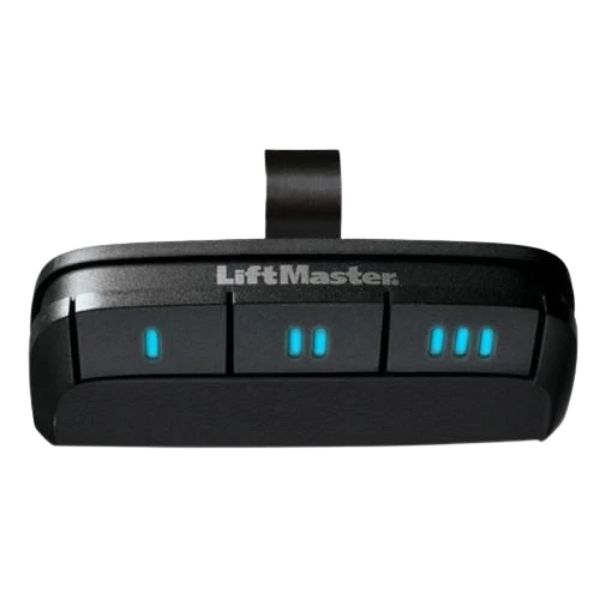

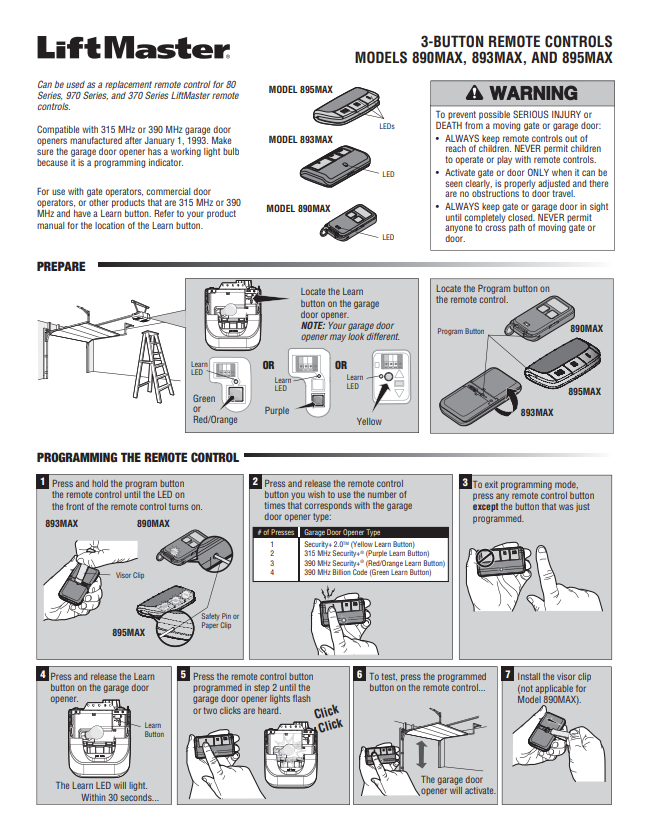

These instructions cover the LiftMaster 890MAX keychain, 893MAX visor, and 895MAX remotes. GDZ’s existing support page lists them for LiftMaster, Chamberlain, Sears, and Raynor openers made since 1993 when the Learn button is green, red/orange, purple, or yellow. The 893MAX can run up to three doors, gates, or MyQ lights. Current replacements are the L993M (replaces 893MAX) and L932M (replaces 890MAX). Those newer remotes are not for green Learn openers.

Compatibility

LiftMaster 890MAX keychain remote — 890MAX

Compatible Learn buttons

Learn Red / Orange — About 1996 to 2005
Learn Purple — About 2005 to 2014
Learn Yellow — About 2011 to present
Learn Green — About 1993 to 1997

Compatible LiftMaster and Chamberlain operators: LiftMaster, Chamberlain, Sears, and Craftsman openers manufactured since January 1993 with a green, red/orange, purple, or yellow Learn button. Also used with 315 MHz LiftMaster and Elite gate operators.

Replaces these older LiftMaster remotes: 81LM, 82LM, 83LM, 971LM, 972LM, 973LM, 970LM, 370LM, 371LM, 373LM, and the matching Raynor models 81RGD, 83RGD, 971RGD, 972RGD, 973RGD, 970RGD, 370RGD, 371RGD, and 373RGD.

Compatible Raynor opener models: Admiral (3850RGD) and Admiral II (8550RGD, 8550WRGD); Airman (3270RGD) and Airman II (8155RGD); Aviator (1280RGD, 2280RGD, 3280RGD) and Aviator II (8355RGD, 8355WRGD); Corporal (3255RGD) and Corporal II (8165RGD, 8165WRGD); Commander (2220RGD, 3220RGD) and Commander II (3240RGD); Endeavor (2585RGD, 3585RGD); General II (WLEDRGD); Pilot (1265RGD, 2265RGD, 3265RGD) and Pilot II (8365RGD, 8365WRGD-267); Navigator (1245RGD, 2245RGD, 3245RGD); Prodigy (3800RGD) and Prodigy II (8500RGD, 8500WRGD); Sentinel (85503RGD); Sentinel 360 (87504RGD-267); Sentinel III (84505RGD); Sergeant II (8160WRGD); Ultra (2595RGD, 3595RGD) and Ultra II (8587RGD, 8587WRGD); and Voyager (84501RGD).

Not every compatible opener or replacement remote is listed here. Current replacements for this family are the L993M (replaces 893MAX) and L932M (replaces 890MAX). Those newer remotes are not for green Learn openers.
