The 75424 is a 315 MHz plug-in receiver set. It includes the receiver, one 382 Digital remote, a 3-prong programming connector, a visor clip, bell wire, and instructions. It is the update when an older Marantec radio is dead and the matching remotes are gone.

Compatibility

Use this set on Mac-Lift Deluxe 2005 and Elite 2007 openers that used 40 MHz radios. It also replaces older 40, 390, and 433 MHz Marantec radio equipment on Mac-Lift and M4500 operators. It is the replacement for the M5-831 and M5-831-II module receivers. It works on other standard garage door operators too. Connect the two wires to the operator, plug in the receiver, and program the remote to the new receiver.

The set works with the current 382, 384, 392, M13-631 keypad, and the Marantec wireless wall station. Older 315 MHz parts that still work are the M3-2312, M3-2314, M3-3313, and M3-631 keypad. It makes the operator Homelink compatible.

Instructions

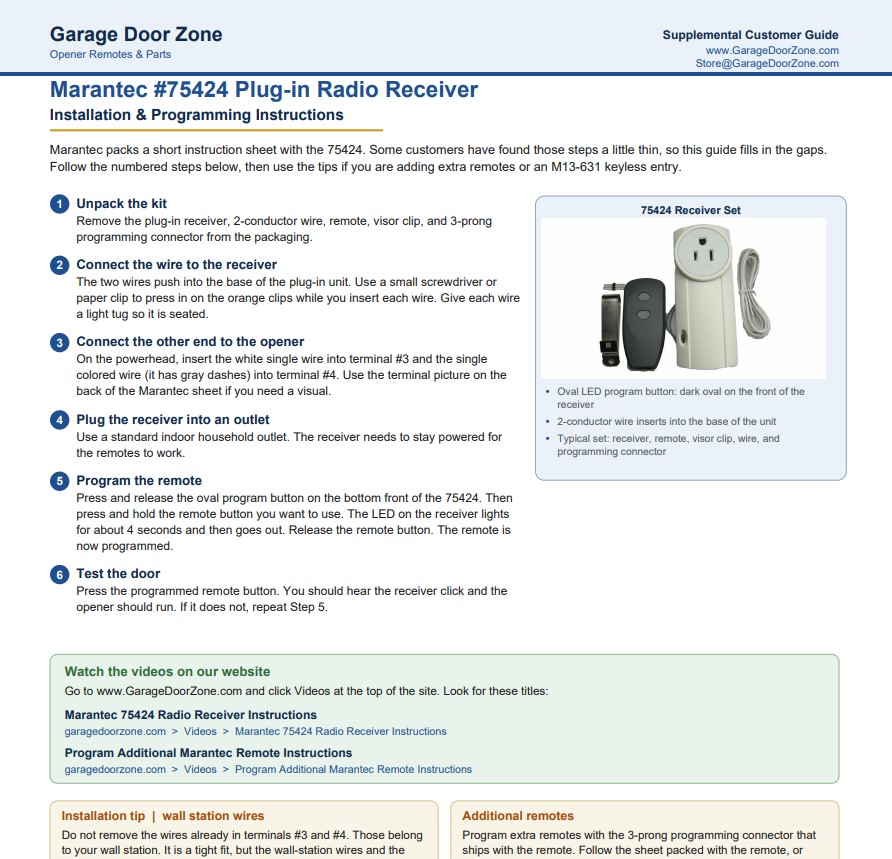

PDF 75424 Official Receiver Instructions Download PDF PDF 75424 Supplemental Installation Instructions Download PDF
