61LM / 62LM / 63LM / 64LM / 33LM LiftMaster Remotes
The 61LM, 62LM, 63LM, 64LM keychain, and 33LM remotes are 390 MHz remotes with 9-position trinary DIP switches. They are discontinued. A current 1-button replacement is the Stinger 390LMD21V. These remotes do not use a colored Learn button. Match the 9 DIP switches to a working remote or to the receiver. The download below is the instruction PDF.
Compatibility
How they program: 9-position trinary DIP switches at 390 MHz. Copy the switch pattern from a working remote.
Compatible equipment: LiftMaster receivers 320LM, 520LM, 412LM, 335LM, 535LM, and 635LM. Raynor receivers 540RGD and 545RGD. Raynor openers such as R130, R150, R170, and Flitestar. The 33LM is also used with a 423LM 3-channel receiver (open / close / stop).
Same as: Raynor 61RGD, 62RGD, 63RGD, 64RGD, and 33RGD. Also matching Chamberlain 750CB / Master Mechanic 61MM radios.
Current replacement: Stinger 390LMD21V for the 61LM 1-button.
Not every compatible opener or replacement remote is listed here. There is no photo on this page for the 62LM; it uses the same instructions.
Instructions

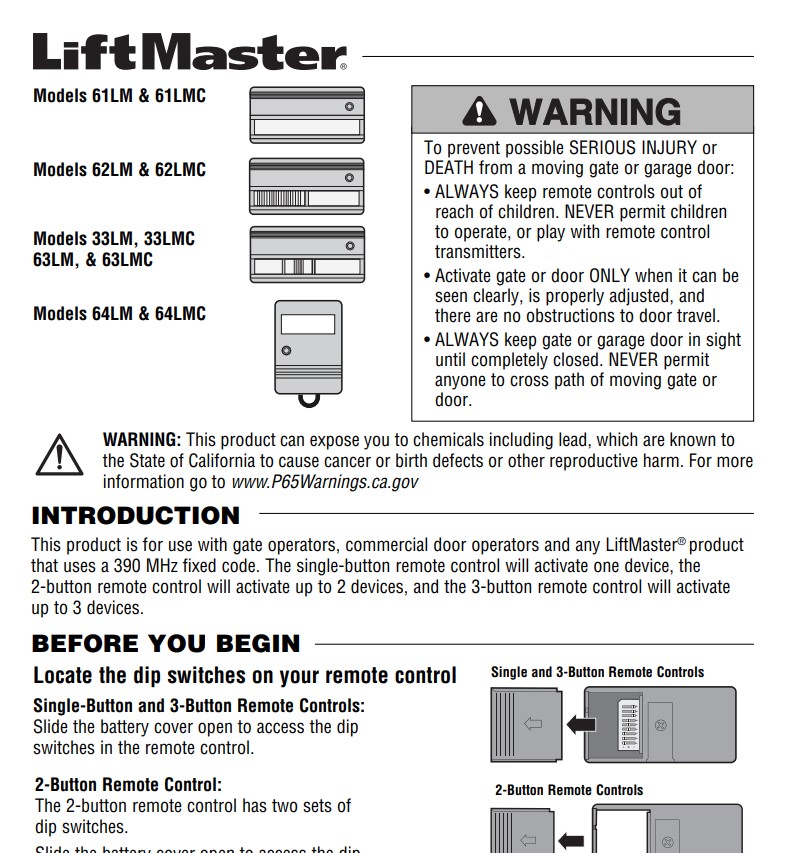

61LM / 62LM / 63LM / 64LM / 33LM Remote Instructions
Download PDF
